Gibus spa INTRODUCES

Zenit

Contact us

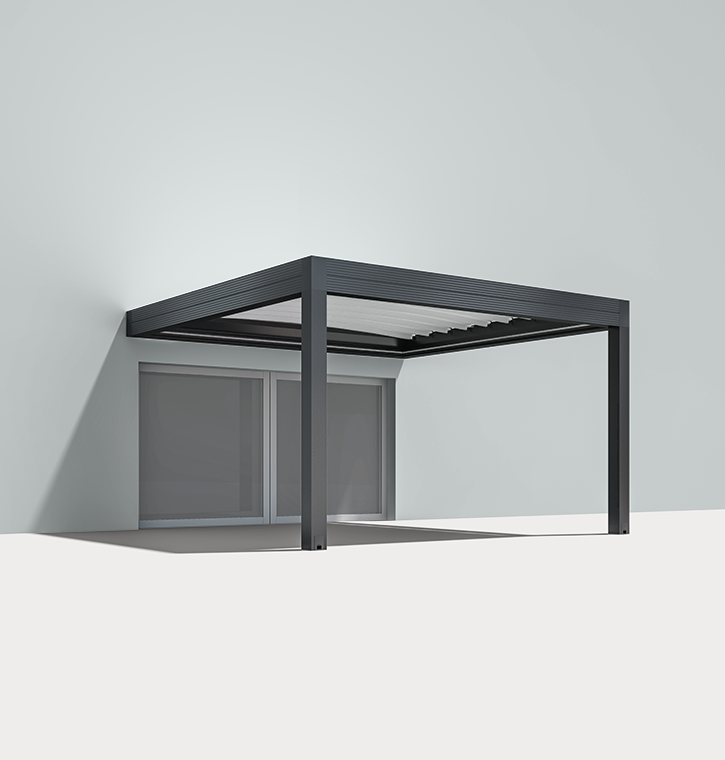

Zenit pergola

Modular folding pergola with flat roof and a range of accessories



Pergola system with retractable roof system in block-out PVC fabric, resistant to UV and waterproof. The structure consists of horizontal beams, perpendicular to the posts. No slope for water drainage is required. The roof system drains the rainwater to the perimetric structure thanks to the curved system of cloth profiles. The gutter is integrated within the perimetric frame and the drain water to the ground is through the posts. The perimetric frame is patented Anti-Splash, which means that the up and over side prevents the rainwater, which falls from the cloth to the gutter, from spurting inside the pergola. Aluminium profiles and aluminium die cast parts are powder coated. Screws are in stainless steel. It can be operated RTS or IO Home-control motor. LED spots can be integrated in the cloth profiles or in the perimetric frame. LED Strip RGB can also be installed in the perimetric frame.

Zenit pergola
Zenit pergola
Zenit pergola
Zenit pergola
Salone del mobile Salone del mobile
Zenit pergola
Product Overview
.
Zenit pergola
Product name

Zenit

Designer

Gibus R&D

Materials

Aluminium

Features

freestanding, with integrated lighting, motorized

Dimensions
1 Module:
L max 600cm x S max 710cm
Production process
Each Zenit is made to measure, starting with a project developed for each individual need.
Year

2018
